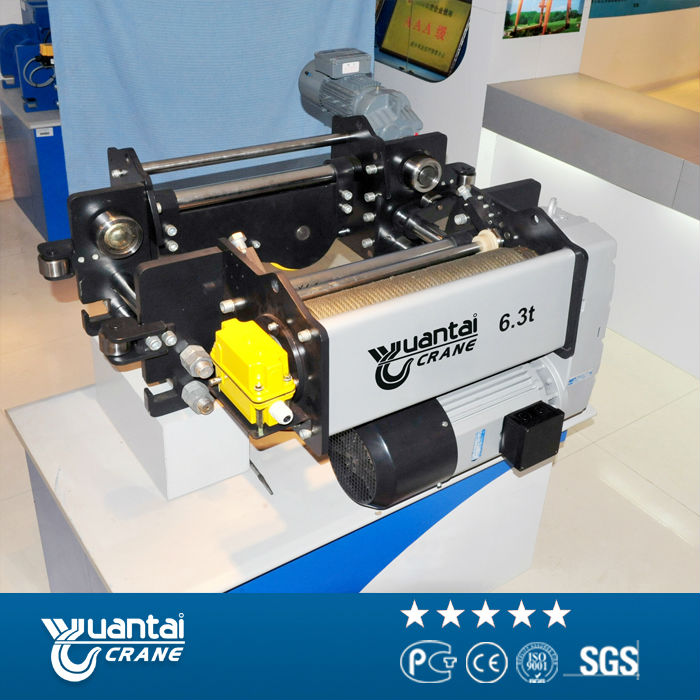

YT free maintenance Low headroom ND type lectric wire rope monorail construction hoisT

Product Categories
Henan Yuantai Crane Machinery Import&Export Co.,Ltd
Contact Now

YT free maintenance Low headroom ND type lectric wire rope monorail construction hoisT

Place of Origin : Henan, China (Mainland)

Brand Name : YT

Certification : ISO;CE;SGS certifications

Model Number : ND

Usage : Construction Hoist

Power Source : Electric

Sling Type : Wire Rope

Maximum Lifting Weight : 0.25-80T

Maximum Lifting Height : 12m

Lift Speed : 0.8/5m/min

MOQ : 1

Price : Negotiation

Packaging Details : Packed in wooden cases, the size of electric wire rope hoist due to the different needs of customers

Delivery Time : within 20 days

Payment Terms : TT/LC/Others

Supply Ability : 4000 sets per year

Contact Now

Parameter

Working duty M6
Lifting height m 6 9 12
Lifting speed m/min 0.66/4
Pulley ratio 4/1
Traveling speed m/min 2~20
Max Wheel Load KN 34.7 34.8 34.9
Total weight kg 650 690 730
Main dimension mm 6 9 12
width of main beam b 300~450
Lifting side width K1 560 560 560
Operation side width K2 550 550 550
Hoist length l 1140 1320 1500
Hook superior limit h 700 700 700

Construction Hoist Crane Description:

  • Low noise,environ mental protection ND electric hoist;
  • GD type low-headroom hoist that can reduce construction cost;
  • CD MD model general electric hoist ;
  • HC model electric hoist with bigger lifting capacity;
  • Explosion-proof electric hoist;
  • Across installation type hoist that can increase operation area;
  • Double braking electric hoist used in special industry to strengthen brake and reduce slide
    amount;
  • Metallurgical hoist adaptable for high temperature work place.
